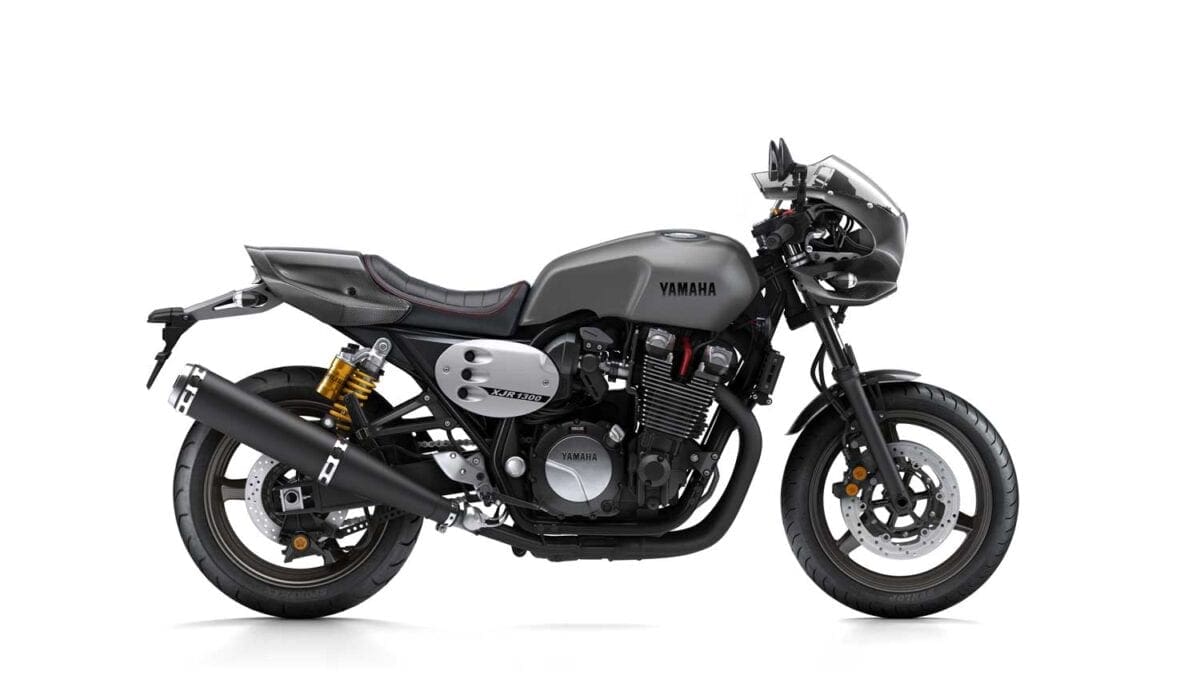

New XJR1300 Racer

Just as Keino’s Rhapsody in Blue inspired the new XJR1300, so the collaboration in 2013 with Deus Ex Machina on the beautiful XJR1300 Eau Rouge inspired the new XJR1300 Racer, which like the new MT-07 Moto Cage, will be a special edition built by an official Yamaha dealer with genuine Yamaha parts. The all-new Yamaha XJR1300 Racer is a custom twist based on the all-new XJR1300 machine. The iconic street bruiser gets a genuine Café Racer look with a number of beautifully crafted additional parts to create a stunning retro styled machine to raise the pulse on the street.

Authentic Café Racer style

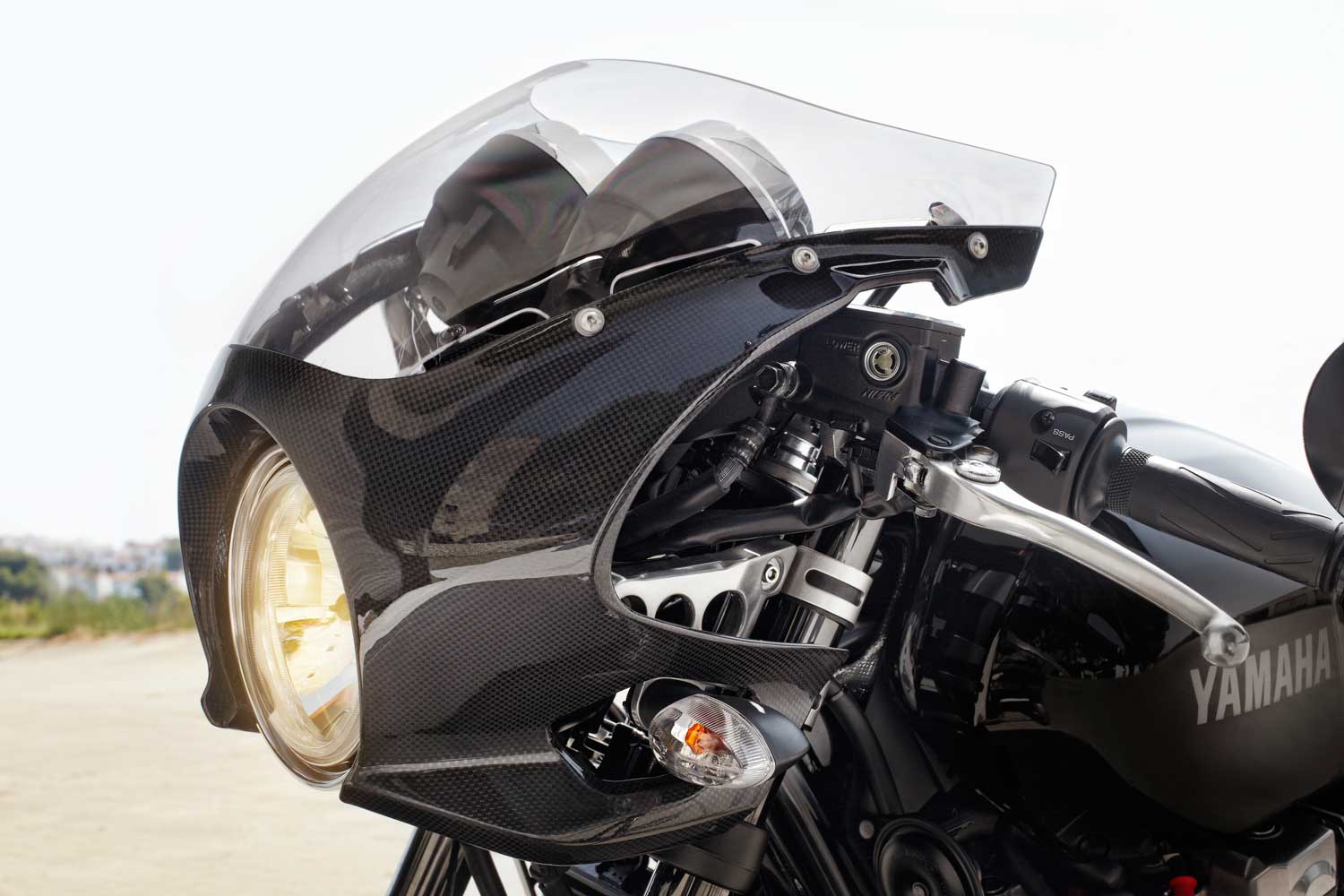

A cool carbon cowling and short carbon front fender pay homage to the iconic café racers of the seventies whilst period style clip-on handlebars are used to deliver the correct riding position. The beautiful and sporty styled solo-seat design is further enhanced with a carbon seat cover to complete the look. The riding position is more focused than the standard XJR giving a genuine Café race style with a narrower, more forward sportier feel.

The 2015 XJR Racer is an evolution of a classic. The 1300cc naked street machine on which it’s based stays true to its ‘Japanese Performance Classic’ origins with a functional, simple design and the largest displacement in line 4 air cooled engine on the market as its beating heart. The Racer is available in the full range of 2015 XJR colors.

The 2015 XJR Racer sits proudly in the sportiest side of the Sports Heritage Range, continuing Yamaha’s drive to deliver beautiful and emotional motorcycles that remain functional even in daily usage.

2015 XJR1300 Racer features

• Carbon cowling
• Clip-on handlebar
• Carbon short front fender
• Aluminium front fender stay
• Carbon passenger seat cover

Take your XJR further

Yamaha have prepared plenty of bolt-on genuine accessories for the 2015 XJR1300 and XJR1300 Racer to help customers realise their personal style. They can also take inspiration from the many ready-made custom pieces from our Yard built collaborators.

2015 XJR1300 / Racer accessories

• Black Akrapovic slip-on muffler
• Sport screen
• Fly screen
• Led indicators
• Custom narrow handlebar
• Roller protectors
• Multiple soft luggage options
• Handlebar end mount rear view mirror kit
• Custom rear set
• Leather fuel Tank band
• Machined billet front sprocket cover by Rizoma
• Machined billet injection cover by Rizoma
• Machined billet pegs by Rizoma

TECHNICAL SPECIFICATION	2015 XJR1300 Racer
ENGINE
Type	Air-cooled, 4-stroke, forward-inclined parallel 4-cylinder, 4-valves, DOHC
Displacement	1,251 cc
Bore x stroke	79.0 x 63.8 mm
Compression ratio	9.7:1
Max. Power	71.9 kW (98 PS) @ 8,000 rpm
Max. Torque	108.4 Nm (11.1 kg-m) @ 6,000 rpm
Lubrication system	Wet sump
Fuel supply system	Fuel Injection
Clutch type	Wet, multiple-disc coil spring
Ignition system	TCI
Starter system	Electric
Transmission system	Constant mesh, 5-speed
Final transmission system	Chain
Primary reduction ratio	98/56 (1.750)
Secondary reduction ratio	38/17 (2.235)
Gear ratio 1st gear	40/14 (2.857)
Gear ratio 2nd gear	36/18 (2.000)
Gear ratio 3rd gear	33/21 (1.571)
Gear ratio 4th gear	31/24 (1.292)
Gear ratio 5th gear	29/26 (1.115)
CHASSIS
Frame	Steel double cradle
Front suspension	Telescopic forks
Front wheel travel	130 mm
Rear suspension	Dual Shock
Rear wheel travel	120 mm
Caster angle	24o 40″
Trail	92 mm
Front brake	Dual discs, Ø 298 mm
Rear brake	Single disc, Ø 267 mm
Front tyre	120/70 ZR17M/C (58W)
Rear tyre	180/55 ZR17M/C (73W)
DIMENSIONS
Overall length	2,190 mm
Overall width	820 mm
Overall height	1,120 mm
Seat height	829 mm
Wheelbase	1,500 mm
Min. ground clearance	133 mm
Wet weight (including full oil and fuel tank)	-kg
Fuel capacity	14,5 litres
Oil capacity	4.2 litres
