EVERYTHING you need to know about Triumph’s 2020 Tiger 900. FULL tech specs, the actual documents from TRIUMPH and a MEGA photo gallery.

Posted

by

Triumph has just announced that there’s a new 900cc Tiger on the way for 2020. And there are FIVE different versions to choose from.

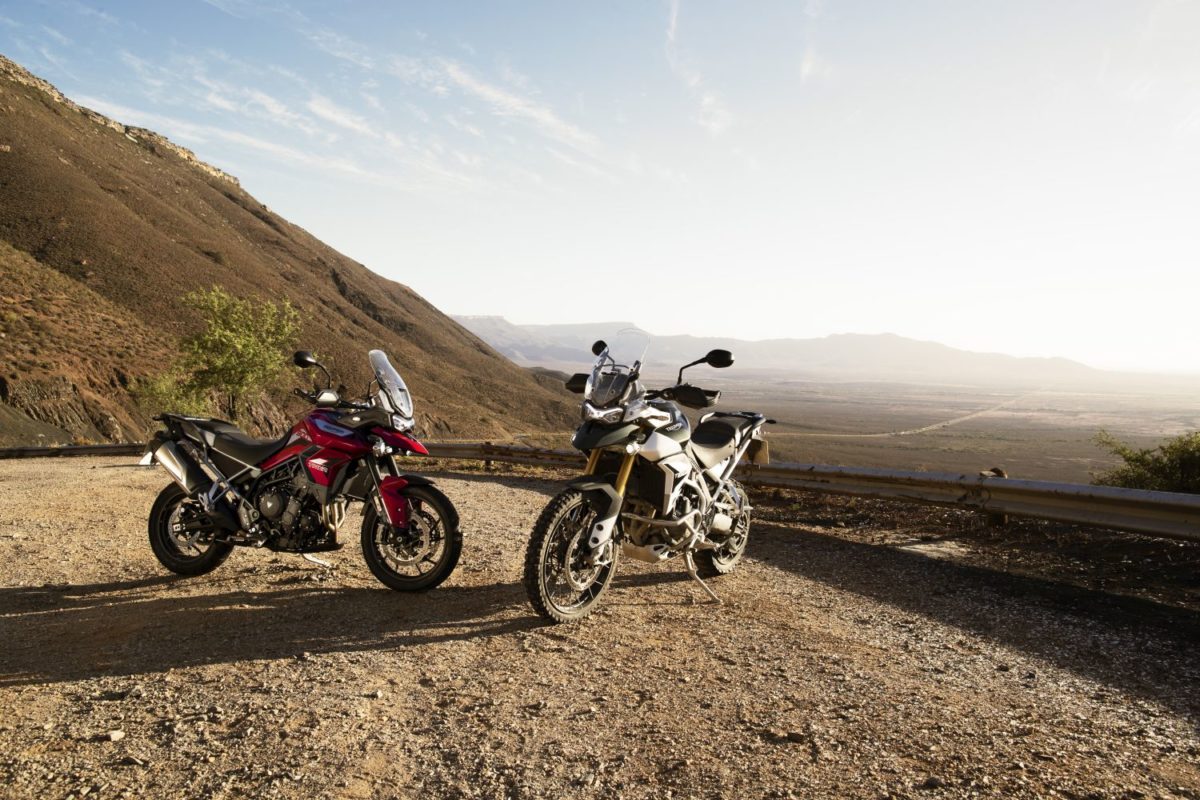

Triumph Tiger 900 Rally Pro and GT Pro

We knew that a new Triumph Tiger was on its way sooner rather than later, following the teaser video which was released by the factory a few weeks’ ago. And now we’ve got our hands on all the technical information straight from the source.

The big news for 2020 is that there are FIVE different models. Alongside the standard Tiger 900, there’s the off-road capable Tiger 900 Rally and Tiger 900 Rally Pro, and the adventure touring ready Tiger 900 GT and Tiger 900 GT Pro.

Article continues below…
Advert

Enjoy everything More Bikes by reading the monthly newspaper, Read FREE Online.

The headline news for all five bikes is their new Euro 5-ready 900cc engine. Withboth higher capacity and higher performance than the outgoing unit, the new 900cc engine kicks out 10% more peak torque (87Nm at 7,250rpm)and 9% more power in the mid-range (93.6bhp at 8,750rpm) than the previous Tiger 800 models.

There’s some clever stuff going on to achieve that. One such thing is the new 1,3,2 firing order, which has resulted in improved intake noise under load, more feedback from the engine to the rider, an incredibly distinctive engine sound and improved tractability and throttle feel – with the engine pulling harder lower down in the rev range. Triumph claim that it helps the new Tiger 900 feel more like twin when you’re low down in the rev range – while still maintaining all the torque, feel and delivery of a triple when you get higher up in the revs.

Elsewhere, the Tiger 900’s get a new, lighter steel trellis frame, which comes with a bolt-on aluminium rear sub-frame and bolt-on pillion hangers. For suspension, it’s kitted out with either Marzocchi or Showa springs, depending on which model you go for. And the GT Pro comes with electronically adjustable rear suspension, which works to allow riders to adjust the rear preload and damping settings via a dedicated menu visable on the TFT dash. It lets riders select from nine levels of damping control, ranging from Comfort (softest) to Sport (firmest), and four preload set-ups. Clever. The new Tiger 900 models also come equipped with Brembo Stylema brakes across the board. They’re top quality, high performance brakes which work to deliver a more immediate braking response.

Article continues below…
Advert

They’re well equipped too, with a new, larger 20 litre fuel tank and a new adjustable screen (which can be adjusted with a single hand). The GT, GT Pro, Rally and Rally Pro also come with a new 7” TFT dash (the base Tiger 900 model gets a 5” TFT dash).

The GT Pro and Rally Pro is compatible with the My Triumph connectivity system and app – which allows riders to answer phone calls, flick between songs, access turn-by-turn navigation and control their GoPro, all from the switch cubes on the left handlebar.

The GT, GT Pro, Rally and Rally Pro are kitted out with new optimised cornering ABS and optimised cornering traction control. The brain of the system is the Tiger’s Inertial Measurement Unit (IMU), which has been developed in conjunction with Continental. The system works to automatically select the appropriate level of ABS and traction control by constantly measuring roll, pitch, yaw and acceleration rates. There are also up to six riding modes – which work to adjust throttle response, ABS and traction control settings. The Tiger 900 Rally Pro gets Rain, Road, Sport, Off-Road, Rider-configurable and Off-Road Pro. The Tiger 900 GT Pro gets Rain, Road, Sport, Off-Road and Rider-configurable. The Tiger 900 Rally and Tiger 900 GT get Rain, Road, Sport and Off-Road – and the Tiger 900 gets Rain and Road.

Article continues below…
Advert

With an eclectic range of accessories, an A2-licence restriction and adjustable seat heights – the new Tiger 900 can be set up exactly how you want, to suit every type of riding. There’s been no news on prices just yet, but with the outgoing Tiger 800 coming in at just over £9,000 and the top of the line off-road XCA just shy of £13,000 – chances are they’ll be priced quite similarly. Although, the top of the line GT Pro with electronic suspension will likely be a good whack more expensive.

That’s the basics covered, but instead of just giving you a few select bits of information and a handful of images like you’d get in the paper, we’ve decided to do things a little bit differently and show you absolutely everything we’ve been sent from Triumph. There’s a lot to wade through, but we know you’ll enjoy ALL the facts.

Here it is. Keep scrolling down for more Tiger stuff than you’ve ever seen…

Article continues below…
Advert

HERE’S EVERYTHING WE’VE GOT ON THE NEW TRIUMPH DAYTONA 765, STRAIGHT FROM THE SOURCE…

NEW TRIUMPH TIGER 900 – A QUANTUM LEAP FORWARD IN ADVENTURE MOTORCYCLE CAPABILITY

Designed to set a new category benchmark for maximum adventure in every ride, Triumph’s new Tiger 900 is completely transformed with an all-new more responsive 900cc triple engine, an incredible standard of specification, new state-of-the-art ride-enhancing technology, and an aggressive new Tiger style and attitude. On top of that, the new Tiger 900 range is now significantly lighter than previous Tiger models, making these the most capable, agile and dynamic middleweight adventure bikes available.

A new name for a whole new generation

Tiger 900 Rally and Rally Pro – Transformed for maximum off-road adventure, and road focused capability and comfort

Tiger 900 GT and GT Pro – Transformed for even more urban adventure, genuine long distance travel and everything in between

Tiger 900 – The new base road-focused Tiger, with a major step forward in capability and style

All-new more responsive 900cc Euro 5 compliant triple engine with innovative new configuration

Higher capacity new 900cc triple engine

10% more torque than the Tiger 800 model, peaking at 87Nm at 7,250rpm

More power across the entire rev range, with 9% more in the mid-range

New unique 1,3,2 firing order for greater character and feel

Category-leading acceleration

More characterful and distinctive soundtrack

All-new benchmark-setting ride from a significantly lighter Adventure bike

New lightweight modular frame with bolt-on rear sub-frame and pillion hangers

New tailored high specification suspension set-up tuned for maximum road and off-road capability, with best-in-class electronic RSU (GT Pro only)

New category-leading top-specification Brembo Stylema monobloc brakes

Large 20 litre fuel tank for advanced touring capability

All-new state-of-the-art ride-enhancing technology

New class-leading 7” TFT instruments (GT & GT Pro, Rally & Rally Pro only)

New integrated My Triumph connectivity system (GT Pro & Rally Pro only)

New optimised cornering ABS and optimised cornering traction control, controlled by an Inertial measurement Unit (GT & GT Pro, Rally & Rally Pro only)

Up to six riding modes: Rain, Road, Sport, Rider, Off-Road, Off-Road Pro

New Triumph Shift Assist, up and down quickshifter (GT Pro & Rally Pro only)

New all-LED lighting, with daytime running lights

New secure mobile phone storage with USB charging

All-new aggressive Tiger style with more dominant adventure-focused stance

The new benchmark for finish and detailing

New premium bodywork with new colours and graphics

Accessible and adaptable

A2 license capability via dealer-fit compliance kit (GT & GT Pro, Rally & Rally Pro only)

Dedicated Tiger 900 GT Low Ride Height version available with unique suspension and lower seat

20mm adjustable seat height on all Tiger 900 models

65+ dedicated Tiger 900 accessories, adding to your adventure

Accessories for added comfort, protection and capability, plus all-new luggage

Two new inspiration kits:  Trekker kit showcases the accessory options that add even greater touring capability and Expedition kit showcases the extensive off-road focused accessories available, including new rugged panniers

The world’s longest running adventure bike story

 The Triumph Tiger has an incredibly rich history, with a bloodline of dedicated off-road models spanning the last 80+ years. Starting in 1936 with the first Tiger competition models, the Tiger name has played a significant role in establishing the adventure category – from racing, to rallies, and to the birth and boom in adventure travel.

Launched in 2010, the Tiger 800 established a leading position in the middleweight adventure segment with its neutral and precise handling, torque rich triple engine, and accessibility to all riders. And in January 2018, during the development programme for the new model, the ‘Tiger Tramontana’ gave viewers of the gruelling Pan-Africa rally a very early hint of the aggressive new styling and poise of the new Tiger 900.

All-new more powerful and responsive 900cc Euro 5 compliant triple engine with innovative new configuration

The all-new higher capacity and higher performance 900cc engine is now fully Euro 5 compliant, and has a new unique 1,3,2 firing order for greater character and feel. The result is improved intake noise under load, more feedback from the engine to the rider, an incredibly distinctive engine sound, and improved tractability and throttle feel, pulling harder, lower down. The result of that is a much closer association to the throttle character, sound and feel of a twin lower down, whilst maintaining all the torque, feel and delivery in the mid-range and top-end of a triple.

The new engine delivers a massive 10% more peak torque than the previous Tiger 800 models, now 87Nm at 7,250rpm, with improved torque low down and across the rev range. Power is also up across the entire rev range, with 9% more in the mid-range, and 95PS peak power at 8,750rpm.

Combined, this delivers more responsive acceleration, with 0-60mph, 0-110mph and 6th gear roll on times all significantly beating the previous generation model and the closest competition. Additionally, it gives the new Tiger 900 a much more aggressive, raspy and engaging triple soundtrack.

An all-new twin radiator set up is mass optimised with a reduced coolant volume. This improves cooling performance, and reduces the ambient heat felt by the rider. The new radiator style enhances the new models’ more striking adventure bike stance and poise. Its shape and position enable a further forward engine position, resulting in a more optimised centre of gravity (40mm forward and 20mm lower). This improves weight distribution for better handling and low speed balance, whilst other improvements to the sump and cooling system ensure it has no impact on ground clearance.

There’s also an all-new air box with a more easily accessible new air filter, plus a slip and assist clutch for added rider comfort.

Significantly lighter, all-new benchmark-setting chassis

Now up to 5kg lighter than the previous generation model, the new generation 900 delivers the most commanding and agile Tiger ride ever. The new steel trellis frame is not only lighter, but now has a modular construction, with bolt-on aluminium rear sub-frame and bolt-on pillion hangers, delivering the most adventure-centric set-up ever for off-road focused riding.

There is a very high specification of suspension across the new 900 range with premium Marzocchi or Showa components tailored to deliver the ultimate capability for the benchmark-setting new middleweight adventure bikes.

For maximum rider convenience and comfort, the GT Pro model features segment-leading electronically adjustable rear suspension, allowing the rider to adjust the rear preload and damping settings via a dedicated menu in the TFT instruments. Riders can select from nine levels of damping control, ranging from Comfort (softest) to Sport (firmest), and four preload set-ups.

All of the new Tiger 900 models now feature category-leading Brembo Stylema brakes for superior stopping power. These are lightweight, compact, carefully sculpted and high performing calipers, with reduced volume around the pistons and brake pads, reducing the internal space occupied by brake fluid, delivering a more immediate braking response. Increased airflow around the brake pads also helps the calipers to cool quicker.

This combination of new lightweight modular frame, new lighter weight engine, high specification suspension and premium Brembo brakes delivers a step change in agility and capability, ensuring exceptional handling in all riding scenarios.

Long distance travel has been improved on the new Tiger 900 range, with a new larger 20 litre fuel tank and new adjustable screen, delivering superior wind protection with a simple single-handed adjustment.

Ergonomics are also improved for the new models, optimised for rider comfort when touring, off-roading and anything in between. The seat width is narrower, and the handlebars are 10mm closer, giving a more comfortable upright riding position, and a greater level of rider control when static and on the move. Additionally, each model has a dedicated and unique footrest position to suit the expected style of riding, and a built-in easily adjustable two-position seat height mechanism. This enables the rider to change the seat height by 20mm to their preferred set-up.

All-new state-of-the-art ride-enhancing technology

The new Tiger 900 range features a significant step forward in its ride-enhancing technology, with state-of-the-art features including:

•             New class-leading 7” TFT instruments (GT & GT Pro, Rally & Rally Pro only) – Featuring dedicated Tiger start-up logos, the new larger TFT instruments present rider information in four different styles with complete clarity. There are also four different colour options to choose from and high/low contrast versions for excellent visibility in all lights. The 7” TFT screen is now bonded to the glass for a crisper image, with no reflective layer.

(The base Tiger 900 model features 5” TFT high contrast instruments)

•             New My Triumph connectivity system and app (GT Pro & Rally Pro only) – With TFT instrument styles designed specifically for connectivity, the integrated My Triumph connectivity system and app seamlessly enable phone call and music operation, turn-by-turn navigation, and GoPro control – all accessed via the switch cubes and displayed on the 7” TFT screen.

(The My Triumph connectivity system is available as an accessory option on the GT and Rally models, including a dedicated Bluetooth® connectivity module)

•             New optimised cornering ABS and traction control, with IMU (GT & GT Pro, Rally & Rally Pro only) – New optimised cornering ABS and optimised cornering traction control comes as standard on the mid and top spec new Tiger 900s, and is enabled via an Inertial Measurement Unit (IMU) developed in conjunction with Continental. This supports the automatic selection of the appropriate level of ABS and traction control intervention by constantly measuring roll, pitch, yaw and acceleration rates, in order to calculate the lean angle. This fully integrated technology system ensures greater riding stability at all times.

•             Up to six riding modes – Riding modes adjust throttle response, ABS and traction control settings for maximum rider control in all riding conditions. The new anti-stall feature on the Off-Road and Off-Road Pro modes automatically increases the idle revs to prevent stalling. The Off-Road Pro riding mode, exclusive to the Rally Pro model, is Triumph’s most extreme off-road set-up for advanced off-road adventure, with ABS and traction control turned off, and an off-road throttle map.

 Tiger 900 Rally Pro: Rain, Road, Sport, Off-Road, Rider-configurable & Off-Road Pro

Tiger 900 GT Pro: Rain, Road, Sport, Off-Road & Rider-configurable

Tiger 900 Rally & Tiger 900 GT: Rain, Road, Sport & Off-Road

Tiger 900: Rain & Road

•             New all-LED lighting, with daytime running lights (DRL*) – The headlight, tail light and indicators* on all new Tiger 900 models are now LED powered for maintenance-free active safety. In applicable markets, the headlight features Triumph’s signature shape DRL* for enhanced visibility in all lights. The GT Pro and Rally Pro models also feature LED auxiliary fog lights for additional long distance capability. (*market specific)

•             New Triumph Shift Assist, up and down quickshifter (GT Pro & Rally Pro only) – Enabling smooth, comfortable clutch-less up and down gear changes whilst maintaining the accelerator position, the Triumph Shift Assist reduces rider fatigue and improves the ride. (Available as an accessory on the base and mid-spec Tiger 900 models)

•             New secure mobile phone storage and USB charging (GT & GT Pro, Rally & Rally Pro only) – A secure compartment under the seat houses a handy 5V USB power socket to enable uninterrupted use of the My Triumph connectivity system.

•             Highest level of standard technology specification (GT & GT Pro, Rally & Rally Pro only) – Fitted as standard for maximum rider comfort and convenience, the mid and top spec Tiger 900 models feature illuminated switches with a 5-way joystick, electronic cruise control and heated grips.

•             Fully loaded GT Pro and Rally Pro technology – Exclusive to the top spec Tiger 900 models are the unique-in-segment heated seats (with separate pillion control) and the tyre pressure monitoring system (TPMS).

All-new aggressive Tiger style with more dominant adventure-focused stance

All-new aggressive styling, re-designed smaller-scale bodywork, revised finishes and cleaner lines give the new Tiger 900 a more distinctive and dominant adventure stance. This is supported by the narrow stand over width, the visually lighter front end and the dominant fuel tank design and size.

The all-new bodywork has a more focused and aggressive adventure style, and includes fuel tank, tank end panel, high mudguard, seat panel, radiator cowl and radiator duct exit. The finish and detailing is also improved to its highest ever level, making the Tiger 900 the new benchmark for quality.

Colour Options

Tiger 900 Rally & Rally Pro: Matt Khaki, Sapphire Black and Pure White, all featuring contemporary new decals and a distinctive white frame inspired by the ‘Tiger Tramontana’ rally bike

Tiger 900 GT & GT Pro: Korosi Red, Sapphire Black and Pure White, all featuring premium tank badges and contemporary new decals

Tiger 900: Pure White

 Accessible and adaptable

Making the new Tiger 900 even more accessible to more riders, the mid and top spec models have a dealer-fit A2 license compliance kit available, which incorporates a dedicated APS twist grip and engine tune. Full power can be easily reinstated by the dealer once the rider has achieved their full license.

The Tiger 900 GT is also available in a dedicated Low Ride Height variant, which is 50mm lower than the standard GT model, achieved by a dedicated suspension set-up and a lower seat. This variant also features the built-in additional seat height adjustment of 20mm, giving a seat height of 760 – 780mm.

65+ dedicated new accessories, adding to your adventure

A range of over 65 genuine Triumph accessories are available for the new Tiger 900 models, all designed alongside the bikes themselves to ensure seamless integration, and the same exacting standards of manufacturing quality and finish. There are two new luggage ranges created in partnership with Givi – the Trekker side-opening panniers with 52 litre twin helmet top box, and the Expedition top-opening panniers, with matching 42 litre top box. Plus there are accessories for added comfort, protection, capability, style and security.

Two new inspiration kits deliver a complete package of accessories designed to suit different riding needs, which can be used as inspiration for riders to create their own perfect bike.

The fully loaded ‘Trekker’ inspiration kit showcases the Tiger’s even greater touring capability with the Trekker panniers with powder coated mild steel mounting kit, Trekker top box and backrest, the sliding carriage kit, tank pad and screen deflector.

Alternatively, the ‘Expedition’ inspiration kit showcases the more overt off-road focused accessories available with the Expedition panniers and stainless steel mounting kit, 40 litre roll bag, headlight guard, fork protectors, aluminium radiator guard, upper engine bars and LED fog lights.

A new name for a new benchmark, the new 2020 Tiger 900 line-up delivers a quantum leap forward in capability, with a major transformation to attitude, poise and style.

This versatile and agile range sets a new category benchmark for maximum adventure in every single ride.

SPECIFICATIONS

  TIGER 900 TIGER 900 GT TIGER 900 GT PRO TIGER 900 RALLY TIGER 900 RALLY PRO
Engine Type Liquid-cooled, 12 valve, DOHC, in-line 3-cylinder
Capacity 888 cc
Bore Stroke 78 x 61.9 mm
Compression 11.27:1
Max Power 95.2 PS / 93.9 bhp (70 kW) @ 8,750 rpm
Max Torque 87 Nm @ 7,250 rpm
System Multipoint sequential electronic fuel injection
Exhaust Stainless steel 3 into 1 header system, side mounted stainless steel silencer
Final Drive O-ring chain
Clutch Wet, multi-plate
Gearbox 6 speed
Frame Tubular steel frame, bolt on sub frame
Swingarm Twin-sided, cast aluminium alloy
Front Wheel Cast alloy, 19 x 2.5 in  Spoked Tubeless, 21 x 2.15 in
Rear Wheel Cast alloy, 17 x 4.25 in Spoked Tubeless, 17 x 4.25 in
Front Tyre 100/90-19 90/90-21
Rear Tyre 150/70R17 150/70R17
Front Suspension Marzocchi 45mm upside down forks, non-adjustable Marzocchi 45mm upside down forks, manual rebound and compression damping adjustment, 180mm travel (140mm GT LRH) Showa 45mm upside down forks, manual preload, rebound damping and compression damping adjustment, 240mm travel
Rear Suspension Marzocchi rear suspension unit, manual preload adjustment, 170mm rear wheel travel Marzocchi rear suspension unit, manual preload and rebound damping adjustment, 170mm wheel travel (151mm LRH) Marzocchi rear suspension unit, electronically adjustable preload and rebound damping, 170mm wheel travel Showa rear suspension unit, manual preload and rebound damping adjustment, 230mm wheel travel
Front Brake Twin 320mm floating discs, Brembo Stylema 4 piston Monobloc calipers. Radial front master cylinder, ABS Twin 320mm floating discs, Brembo Stylema 4 piston Monobloc calipers. Radial front master cylinder, Optimised Cornering ABS   Twin 320mm floating discs, Brembo Stylema 4 piston Monobloc calipers. Radial front master cylinder, Optimised Cornering ABS
Rear Brake Single 255mm disc. Brembo single piston sliding caliper, ABS Single 255mm disc. Brembo single piston sliding caliper. Optimised cornering ABS. Single 255mm disc. Brembo single piston sliding caliper. Optimised cornering ABS
Width Handlebars 830mm 930mm 930mm 935mm 935mm
Height (Without Mirrors) 1410-1460mm 1410-1460mm (1385-1435 mm LRH) 1410-1460mm 1452-1502mm 1452-1502mm
Seat Height 810-830mm 810-830mm  (760-780mm LRH) 810-830mm 850-870mm 850-870mm
Wheelbase 1556mm 1556mm (1545mm LRH) 1556mm 1551mm 1551mm
Rake 24.6 º 24.6 º (24.1 º LRH) 24.6 º 24.4 º 24.4 º
Trail 133.3mm 133.3mm (130.0mm LRH) 133.3mm 145.8mm 145.8mm
Dry Weight 192 kg 194 kg (193 kg LRH) 198 kg 196 kg 201 kg
Tank Capacity 20 L 20 L 20 L 20 L 20 L
Fuel Consumption 5.2l/100 km (55.4 MPG)
CO2 Emissions EURO 5 Standard: 119 g/km
CO2 and fuel consumption are measured according to regulation 168/2013/EC.  Figures on fuel consumption are derived from specific test conditions and are for comparative purposes only. They may not reflect real driving results.
